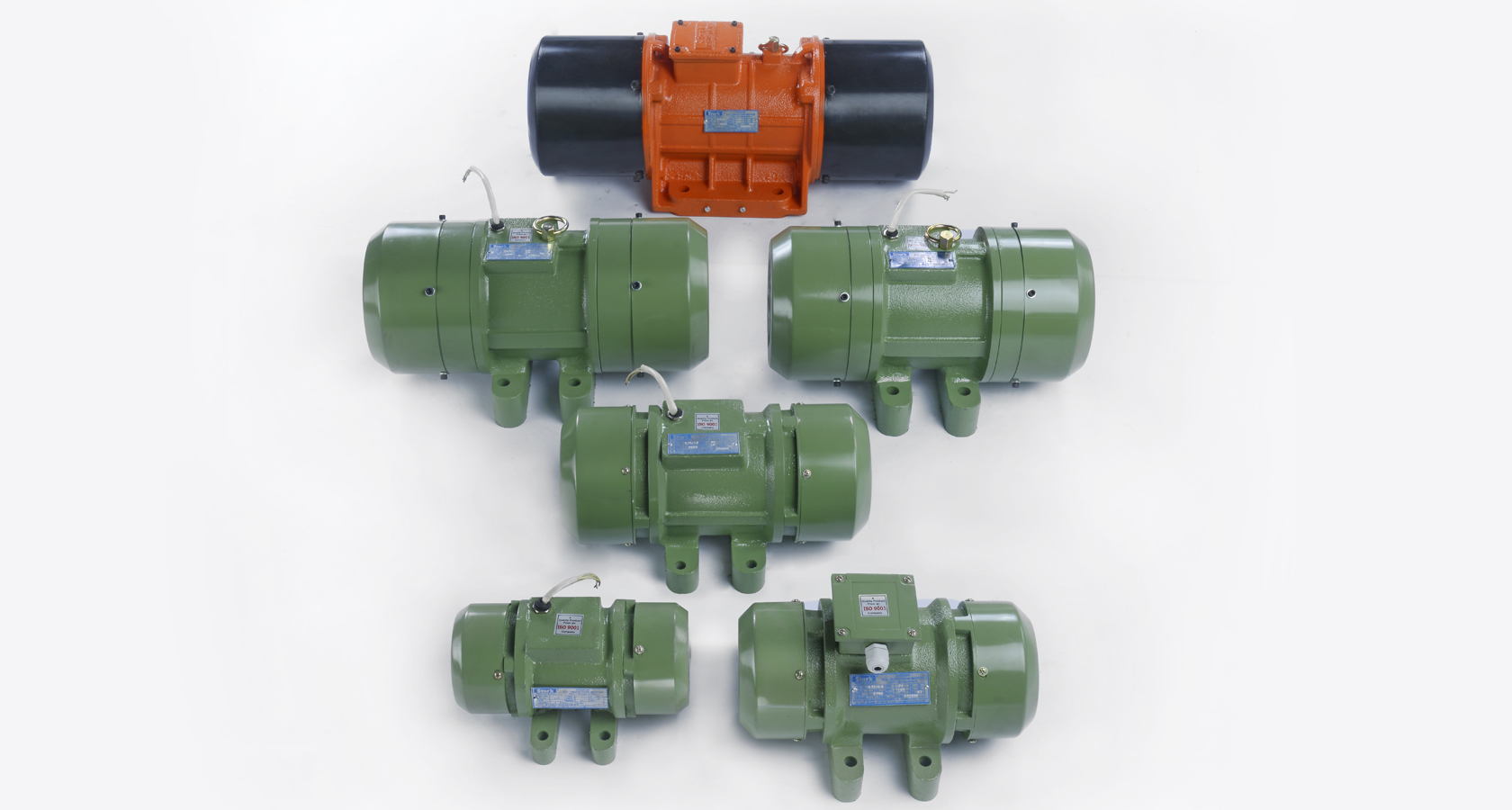

Vibrator Motors

The Vibrating AC Induction motors are (SIVB) with two shaft extensions, to each of which are attached two unbalance discs. At standstill, the centrifugal force can be infinitely varied from zero to maximum by adjusting the unbalance accordingly. The motor shaft runs in liberally sized Ball bearings or Roller bearings. Its withstand strong redial and axial loads.



Our unbalance vibratory motor in 2-4-6 and 8 pole design are used as Drive for vibrating machines for application such as bin-discharging, bulk-product Conveying (horizontal or vertical). Zing or coarse, Screening, Vibrating - Feeders, Paper Jogger, Vibrating tables, Vibrating Conveyors, Concrete Hoppers, Vibrating Grizzly Feeders Dewatering, Compaction, Discharge-aid in bins and silos.

Specifications

RANGES: 0.18 KW / 0.25 HP to 7.5 KW / 10 HP
SPEED: 750 / 1000 / 1500 / 3000 RPM
APPLICATION: Vibrating Purpose
Dimension On Request

Features

» counter weight is used to adjust the vibration level as per the customer requirement.

 |
