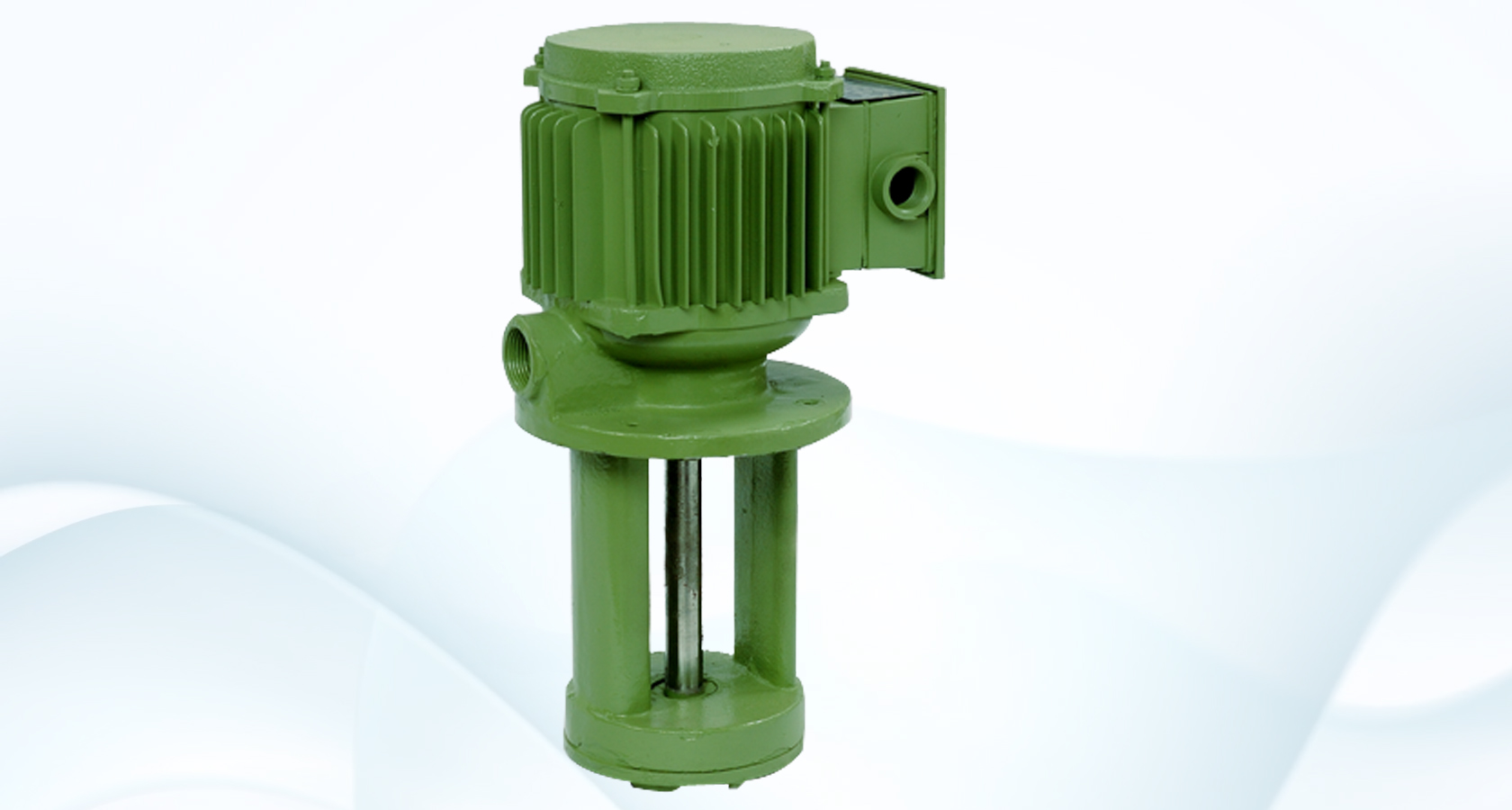

Coolant Pumps

Coolant Tower Electric Motors

Specifications

Ranges: 0.2hp to 2hp
Speed: 2880/1440/960/720rpm
Application: lathe, drilling, milling etc.
Dimensions on request.

Features

» Dust and splashproof (IP 54 ) terminal box.
» Triple protection to prevent coolant ingress into the winding.
» Position of condult entry can be adjusted through every 90° by rotating the terminal box.
» Relative position of terminal box to coolant out-let can be adjusted through every 90° by rotating the body.
» The mounting of the cover on to the terminal box is independent of mounting of the terminal box on to the motor.
» Aluminium impeller offers high resistance to abrasion.
» Dynamically balanced rotor ensures silent and vibration free running.
» Stator winding impregnated under vacuum to work in tropical climate.
» Class "B" insulation.
» High discharge with low power consumption.
» Pressure die-cast-aluminium motor body and casting for pump housing.
» Shaft are made out of EN-8 Steel.
